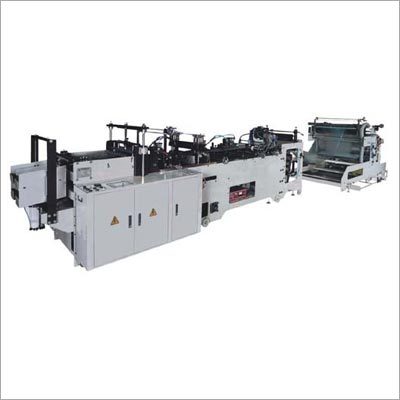

Non Woven Fabric Zipper Bag Making MachineThis unit is new style fully automatic zipper bag making machine which combines our more than 10 years experience on producing the zipper bag equipment and developed successfully in 2000(year). It gains the certificate of The State Major New Products.
Configuration:
- Machine use industrial control level PLC control-driven. (EMERSON, AMERICA)
- The display are controled by touch screen (WEI LUN, TAIWAN).
- Transmission are drived and controlled by three Emerson inverters/transducers. 1PCS 0.75KW, 2PCS 0.4KW. (EMERSON, AMERICA)
- Servo motor for feeding the material. (YASKAWA, JAPAN
- Reducer total 3pcs. (Taiwan ADLEEPOWER).
- Unwinder equiped with magnetic tension control.
- Unwinder equiped with two photocells for tracing. EPC auto-correction, and unwinding position correction.
- Photocell for width control
- Tension control: 2.5kw magnetic brake and Rotary Encoder.
- Pneumatic punching. ( ONE KIDNEY PUNCHER)
- Static eliminator make the bag level and Erect clean.
Main Ttechnical Variables
|
Machine model
|
ZIP-400C
|
ZIP-600C
|
ZIP-900C
|
|
Materlal
|
PP Non-woven fabvic
|
PP Non-woven fabvic
|
PP Non-woven fabvic
|
|
Capacity
|
30~80(Cycle/min)
|
30~80(Cycle/min)
|
30~90(Cycle/min)
|
|
Cutting width
|
100~300mm
|
100~600mm
|
100~700mm
|
|
Cutting Length
|
120~350mm
|
120~560mm
|
120~850mm
|
|
Thickness of fabric
|
20-130 gram
|
20-130 gram
|
20-130 gram
|
|
Film annulus diameter
|
F900x400mm
|
F900x600mm
|
F900x900mm
|
|
Servo motor
|
1.5KW
|
1.5KW
|
3KW
|
|
Main motor
|
0.75kw
|
0.75kw
|
1.5kw
|
|
Heater
|
1kw
|
1kw
|
1kw
|
|
Food-out motor
|
0.3kw
|
0.37kw
|
0.4kw
|
|
Ultrasonic
|
2.5kw1PCS
|
2.5kw2PCS
|
2.6kw3PCS
|
|
Ultrasonic
|
1.5kw1PCS
|
1.5kw1PCS
|
1.5kw1PCS
|
|
Ultrasonic
|
1kw3PCS
|
1kw3PCS
|
1kw3PCS
|
|
Feeding motor
|
0.4kw
|
0.75kw
|
0.95kw
|
|
Main Power
|
16KW
|
18KW
|
20KW
|
|
Dimension(LxWxH)
|
6500x1200x1500
|
6850x1400x1500
|
9000x1300x1600
|
|
voltage
|
50-60Hz 220v
|
50-60Hz 220v
|
50-60Hz 220v
|
|
