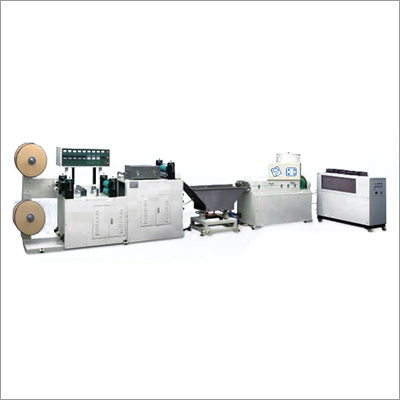

Zipper Profile Extruder
This machine is suitable for LDPE and PP, zipper strip used for packing bag sealing andjointing of food, garment and textile industrial bags.
- Cylinder screws of extruding machine are all treated and processed with optimization with the best hardness and corrosion resistance.
- Double rolling as rolling equipment adopts touque motor to keep suitable tension.
- Neat rolling and convenient roll changing.
Configuration:
- Advanced zipper combining device makes zipper smooth and accurate.
- Advanced dehydration structure.
- Automatic Alarm. When PP/LODE Chips Exhausted.
- Independent torque double rolling equipment.
- High-frequency cooling system.
Main Ttechnical Variables
|
Mechine model
|
ZIP 45
|
|
Resin Applicable
|
LDPE-PP
|
|
Capacity
|
10~50/* (Cycle/min)
|
|
Cutting width
|
3-50 mm
|
|
Thickness of film
|
0.1-0.3mm
|
|
Film annulus diameter
|
500 mm
|
|
Diameter of Screw
|
45mm
|
|
Draw Ratio of Screw
|
28:1
|
|
Transducer motor
|
5.5 kw
|
|
Power of Assistant Machine
|
0.75 kw
|
|
Heater
|
10kw
|
|
Cooling
|
5 HP
|
|
Power
|
15 KW
|
|
Dimension (LxWxH)
|
6800x1200x1800mm
|
|
Voltage
|
50 Hz-60Hz-220v
|
Capacity
|
No
|
Zipper model
|
Capacity(m/min)
|
|
1
|
LDPE2040
|
18m
|
|
2
|
LDPE1513
|
30m
|
|
3
|
PP1513
|
30m
|
|
4
|
LDPE1518
|
30m
|
|
5
|
LDPE2004
|
35m
|
|
6
|
PP2004
|
35m
|
|
7
|
LDPE2010
|
25m
|
|
8
|
LDPE2225
|
25m
|
|
